PVC Welded Wire Green Mesh Security Fencing 358 2.2m width
| Place of Origin | Anping,China |
|---|---|
| Brand Name | SOURCE WIRE MESH |
| Certification | ISO9001/ISO:14001/ISO:18001 |
| Model Number | THW-001 |
| Minimum Order Quantity | 100 panels |
| Price | $15.00-$35.00/PC |
| Packaging Details | Fence panel/brace: steel pallet with belt Fence feet/base: steel pallet with plastic film Fence clamp: carton |
| Delivery Time | 15DAYS |
| Payment Terms | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Sets per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | 358 High Security PVC Welded Wire Mesh Fence | Type | Security Fence, Fence Accessories |
|---|---|---|---|
| Mesh Size | 12.7x76.2mm | Wire Diameter | 3mm 4mm 5mm |
| Fence Width | 2.2m,2.4m,2.9m, Etc | Fence Heigth | 1.8m,2.1m |
| Welded Mesh Openning | 60x150mm, 50x75mm, 50x50mm, 75x75mm, Etc | Frame Rpund Tube | 32mm, 42mm, 48mm, Etc. |
| Wire Wall Post | 60 X 60 X 3 RHS C/w Clamp Bar | ||
| High Light | 358 Green Mesh Security Fencing,ISO 18001 Green Mesh Security Fencing,2.2m PVC Welded Wire Mesh Fence |
||
Product Description

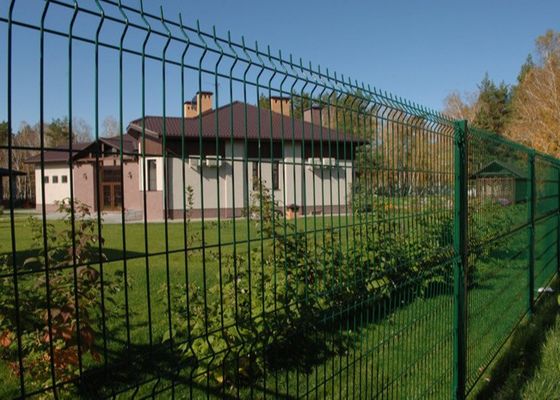

358 High Security PVC Welded Wire Mesh Fence
358 High Security PVC Welded Wire Mesh Fence Product Decription
358 mesh – as known airport fence , prison fence , is a high security mesh system widely used on high security installations such as prisons and military sites. Its has small apertures making it extremely difficult to cut the wires and near impossible to climb
358 Fence Panels:Manufactured using 4mm wire welded at each intersection creating a strong and durable panel, the mesh aperture consists of a 76.2 x 12.7mm mesh spacing providing ultimate protection against climbing and cut-through with excellent see through visibility!
358 Fence Posts: Square hollow section posts provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust. Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplated for fixing to a concrete base, and/or cranked to receive another panel or for razor wire
358 Fence continuous clamp bar fixing: The most secure method of securing panels to posts. A continuous 40 x 6mm flat bar clamps the mesh panel to the post, using Galvanised M8 Bolts which pass through the posts and are secured from the inside of the fence by means of anti-vandal and tamper resistant Permacone Nut.
High Security 358 Fence Application
- Mesh Fencing for Tennis Courts
- Playground Fencing
- Rebound Fencing for Sports and Recreation Grounds
- Secure Mesh Fencing for Schools, Homes and Residetial Areas
- Mesh Fencing for Retail and Offices
- Security Fencing for Airports
- All Boundary Demarcation
- Low, Medium and High Security
- Mesh Fencing for Industrial Units and Warehousing
- Private Construction Site Fencing
High Security 358 Fence Specification
| 358 Fence | 2.1m | 2.4m | 3.0m |
| Panel height | 2134mm | 2438mm | 2997mm |
| Panel width | 2515mm | 2515mm | 2515mm |
| Mesh size | 12.7 x 76.2mm | 12.7 x 76.2mm | 12.7 x 76.2mm |
| Horizontal wire | 4mm | 4mm | 4mm |
| Vertical wire | 4mm | 4mm | 4mm |
| Panel weight | 50kg | 57kg | 70kg |
| Posts | 60 x 60 x 3 mm | 60 x 60 x 3 mm | 80 x 80 x 3 mm |
| Post length | 2.8m | 3.1m | 4.0m |
| Clamp bar | 40 x 6 m slotted | 40 x 6 m slotted | 40 x 6 m slotted |
| Fixings | 8 galv bolt c/w Permacone secruity nut | ||
| No. of fixings | 8 | 9 | 11 |
Product Display
Package & Delivery
Our Services
(1) Free sample
(2) Factory directly sale
(3) It can customized according to the requirements or drawings
(4)With the fastest speed of delivery
(5)Answer questions in a timely manaer
(6)Terrific after-sales service:24 hours around the clock and 12 months warranty
(7)Long -life maintenance service for the product
