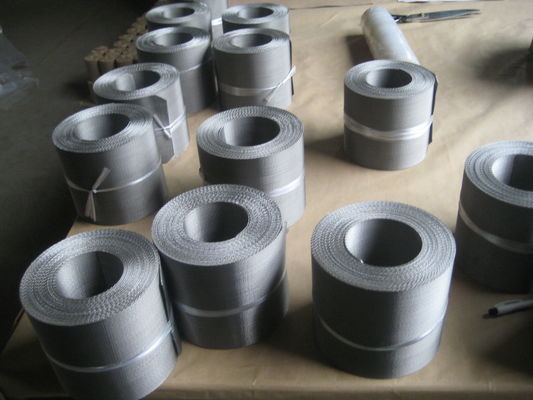

Filter Ribbon Stainless Steel Mesh Belt KPZ 72x15 Metal Mesh Filter Screen

KPZ SS316L/SS304  72x15Mesh Stainless Steel Wire Mesh filter belt Twilled Reverse Dutch Weaves Filter Ribbon screen With Combed Side Hem

Description of KPZ SS316L/SS304 72x15Mesh Stainless Steel Wire Mesh filter belt :

Stainless Steel Wire Mesh is the most basic type of weaves. In plain weave, the warp and weft are aligned

so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one,

then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went

over, and vice versa.

Standard Specs

48x10 mesh RDPW 400 nominal micron

72x15 mesh RDTW 250 nominal micron

132x16 mesh RDTW 200 nominal micron

152x30 mesh RDTW 115 nominal micron

250x40 mesh RDTW 75 nominal micron

Advantages of Stainless Steel Woven Mesh:

• no magnetism in solid solution state;
• excellent high temperature strength
• excellent work hardenability (weak magnetism after processing);
• the appearance of cold-rolled products is bright and beautiful;
• due to the addition of Mo,the corrosion resistance,especially the pitting resistance is excellent;
• compared with 304 stainless steel, the price is higher.

Features of Stainless Steel Woven Mesh​:

• Uniform aperture
• Standard hole size
• Good filter performance.
• Corrosion resistance.
• Anti-acid and alkali
• Anti-high temperture.

Packing way of Stainless Steel Woven Mesh:

1.inside use carton pipe for support+wire mesh layer+water proof paper
2.outside use plastic wooden bags,wooden case/carton pipes/wooden pallets.
3.also we can as per your requirements.
