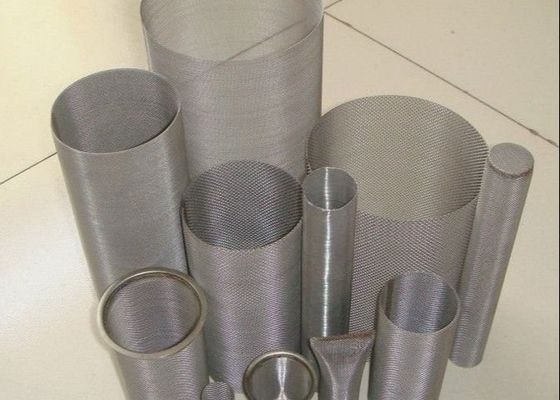

304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness

Place of Origin Hebei,China
Brand Name Source wire mesh
Certification ISO:9001
Model Number 20-100Mesh
Minimum Order Quantity 10 pcs
Price $1.50-$10.50/pc
Packaging Details 50,100,300 pcs per bag , and 1000pcs per carton,or as per requiments
Delivery Time 7-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000 Piece/Pieces per Month as customers demands

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Wire Mesh Filter Tubed Material Stainless Steel 304/316
Weave Style Plain Weave Type Filter Elements
Hole Shape Square Filter Rating 21.8-508%
Thickness 0.025-3MM Or As Request Length Customized
Width Customized Shape Cylinder Tube
Application Filtration Industry Function Filtrating Impurity
High Light

304 Stainless Steel Wire Mesh

,

3MM Stainless Steel Wire Mesh

,

Customized Wire Mesh Filter Tube

Leave a Message
Product Description

Stainless steel wire mesh filter tube with corrosion resistance for liquid filtration



Stainless steel wire mesh filter tube product description:


Wire mesh filter has a greater number of finer wires in the shute direction and is woven in both plain and twill weave patters. It is normally rated by the size particle it will retain, either as the absolute micron rating or the nominal micron rating, expressed in microns. We normally use stainless steel woven mesh 304, 304L, 316, 316L as filter media in the patterns of plain, twilled, dutch weave to achieve full range of aperture and properties.



Stainless steel woven wire mesh pipe normal made of stainless steel filter mesh.It is made of stainless steel
302, 304, 316, 316L and other materials with high temperature resistant and corrosion resistant.

Stainless steel woven wire mesh pipe design outer dimensions and filtration accuracy can be customized according
to any buyer needs.So It can widely use ifor filtering work in different industries.



Stainless steel woven wire mesh pipe structure:



  • single-layer network,
  • combined filter film.
  • Multi-layer film filter.



Stainless steel woven wire mesh pipe Process Technique:

  1. Spot welded,
  2. edge covering
  3. sintered.

Stainless steel woven wire mesh pipe specification list:



Mesh Wire Dia. (MM) Opening (MM) Material (AISI)
18meshx18mesh 0.35 1.06

304 or316

20meshx20mesh 0.40 0.87 304 or316
24meshx24mesh 0.26 0.80 304 or316
30meshx30mesh 0.30 0.55 304 or316
35meshx35mesh 0.17 0.56 304 or316
40meshx40mesh 0.23 0.40 304 or316
50meshx50mesh 0.20 0.31 304 or316
60meshx60mesh 0.15 0.27 304 or316























Plain weaving mesh tube with small diameter:





304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 0304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 1304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 2304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 3





Dutch weaving mesh tube with small diameter

304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 4304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 5

Dutch weaving mesh tube with large diameter

304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 6304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 7
304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 8



Woven mesh tube with metal edges



304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 9304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 10

304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 11




Packing details:

304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 12304 Stainless Steel Wire Mesh Filter Tube customized 3MM Thickness 13
